- Heavy lifting performance: With a maximum payload of 25-tons the LTC250V5 is a highly powerful and economical crane. Its high-strength U-shaped boom, advanced telescopic hydraulics and rock-solid stability make it a popular choice for a wide variety of heavy lifting applications. With a maximum boom length of 49 m and maximum jib length of 8 m it has both the reach and lifting capability to get the job done.
- Fast and easy mobility: With a maximum travel speed of 80km/h, getting on-site is quick and easy.
- Comfort and safety: With a surprisingly spacious cab benefitting from ergonomic controls and excellent all-round visibility, including strategically positioned mirrors and a rear-view camera, the operator can work safely and comfortably.

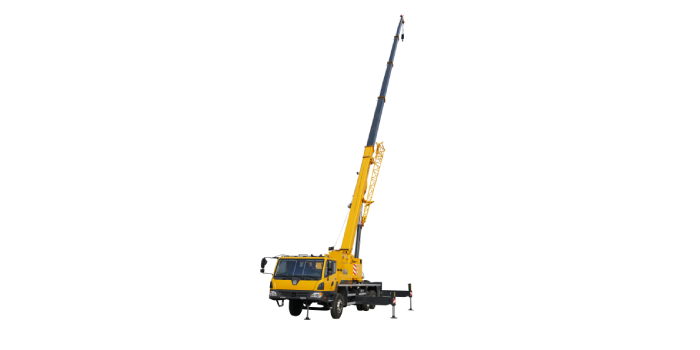

LTC250V5
Max Boom Length (Main Boom+Jib):
41+8 m
Max Rated Lifting Capacity:
25 t
Counterweight:
7 t
Product Features
LTC250V5
LTC250V5
Specifications
| Max. rated lifting capacity | 25 t |
| Dimensions (L x W x H) | 12500x2575x3445 mm |
| The axle distance | 4635+1350 mm |
| The total weight during driving | 32000 kg |
| Engine model | ISDe285 30 (EU Stage III) |
| Max. rated power of the engine | 210/2500 kW/(r/min) |
| Max. rated torque of the engine | 970/1200-1700 N·m/(r/min) |
| Max. travel speed | 80 km/h |
| Min. turning diameter | 21 m |
| Approach and departure angle | 20° ; 14° |
| Outrigger transversal span | 6.42 m |
| Outrigger longitudinal span | 5.5 m |
| Boom luffing time (lifting/descending) | 35/50 s |
| Boom extension time( extension/retraction) | 80/80 s |
| Max. slewing speed | 2.4 r/min |
| Max. lifting speed: Main winch (No load) | 130 m/min |
| Max. lifting speed: Auxiliary winch (No load) | 130 m/min |
| Download Brochure |
※For reference only.
